In our experience running high-volume powder coating lines, we can say without hesitation: 80% of coating failures trace back to inadequate surface preparation, not the powder itself. The coating is only as good as the surface it bonds to.

What Pre-Treatment Actually Does

Pre-treatment serves three distinct functions that are often conflated. Understanding each separately is the key to appreciating why no stage can be skipped without consequences:

Cleaning: Removing oils, lubricants, drawing compounds, rust, mill scale, and loose contamination that would prevent intimate contact between coating and substrate.
Conversion coating: Chemically converting the metal surface into a stable inorganic compound (phosphate, chromate, or zirconate) that provides a mechanical and chemical anchor for the powder.
Passivation: Creating a corrosion-inhibiting interface layer that slows electrochemical reactions beneath the film in service.

A line that only cleans but doesn't convert achieves adhesion in the short term but typically fails within the first year of service, especially in humid or corrosive environments. Conversion coating is non-negotiable for any product with a service life expectation beyond 18 months.

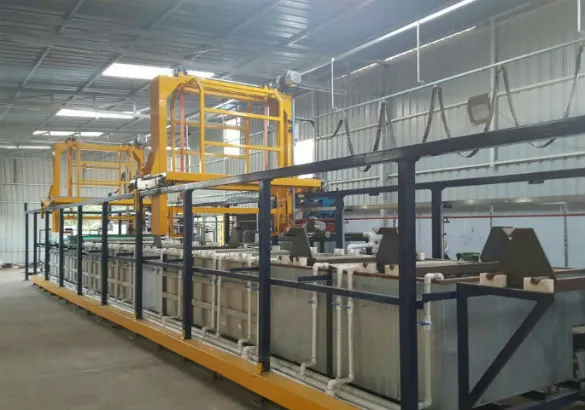

Our 7-Stage Pre-Treatment Line

Alkaline Degreasing — Hot Spray (55–65°C)

A hot alkaline detergent solution removes oils, greases, and forming lubricants via saponification and emulsification. Hot spray application is more effective than dip at penetrating blind holes and internal cavities. pH is maintained at 10–12 for effective oil removal.

Fresh Water Rinse — Stage 1

A counterflow rinse cascade removes degreaser chemistry and emulsified oils from the surface. Conductivity is monitored continuously; when conductivity exceeds 500 μS/cm, the rinse water is replenished to prevent drag-out contamination.

Activation (Titanium Colloidal Solution)

This often-omitted stage is critical for fine-grain zinc phosphate deposition. Titanium colloid activator condenses free activation sites on the steel surface, producing a phosphate crystal size of 5–10 μm vs 20–40 μm without activation. Smaller crystals mean greater surface coverage and better coating adhesion.

Zinc Phosphating (45–55°C)

The conversion coating stage. A zinc phosphate bath deposits a continuous layer of zinc iron phosphate crystals (hopeite and phosphophyllite) directly onto the steel surface. The coating weight targets 1.5–3.0 g/m². Phosphophyllite (the iron-substituted phase) is more corrosion-resistant and is favoured on steel substrates.

Fresh Water Rinse — Stage 2

Removes excess phosphate chemistry and soluble salts. Contamination at this stage with phosphate ions is a known cause of adhesion failure and osmotic blistering. Rinse water conductivity target: below 200 μS/cm.

Passivation / Sealer Rinse

A chromate-free passivation rinse (zirconium or titanium-based) seals the phosphate crystal layer, fills micro-pores, and provides additional corrosion inhibition. This stage replaces legacy chromate rinses and meets modern RoHS and ELV regulatory requirements while delivering equivalent or superior performance.

DI Water Final Rinse

Deionised water (conductivity <20 μS/cm) removes all trace ionic contamination. Soluble salts on the surface are the number-one cause of osmotic blistering in humid environments. This final stage is the last line of defence before the oven.

Key Process Parameters and Why They're Monitored

4×

Daily bath titration checks

<20
μS/cm

Final rinse conductivity

1.5–3g

Target phosphate coating weight per m²

Parameter	Stage	Target Range	Consequence of Deviation
Free alkali (titration points)	Degreaser	8–14 points	Inadequate oil removal; contaminated phosphate bath
Temperature	Phosphate	45–55°C	Under-temp: thin coating; over-temp: heavy sludge, coarse crystals
Free acid / total acid ratio	Phosphate	1:8–1:12	Imbalance causes coarse or incomplete phosphate layer
Conductivity	Final DI rinse	<20 μS/cm	Residual ions cause osmotic blistering and adhesion loss
Coating weight	Post-phosphate	1.5–3.0 g/m²	Low: inadequate adhesion; high: powdery, friable layer

Common Failure Mode: Skipping Activation

Many contract coaters run 5-stage lines that omit the activation step. The phosphate coating still forms, but the crystal size is large and uneven, leading to patchy coverage and adhesion values 30–40% below what's achievable with activation. If your coater can't explain what their activation stage does, treat that as a red flag.

How Pre-Treatment Impacts Salt Spray Performance

The relationship between pre-treatment quality and corrosion performance is not linear — it's exponential. Doubling the phosphate coating weight doesn't double salt spray performance; combined with a DI final rinse and good passivation, the improvement can be an order of magnitude.

Based on our internal data across several thousand test panels:

Alkaline clean only (no phosphate): typically 50–100 hours neutral salt spray (NSS) before underfilm creep at a scribed line
Iron phosphate + no DI rinse: 150–300 hours NSS
Zinc phosphate + DI rinse + passivation: 500–1000+ hours NSS depending on powder chemistry

Pre-Treatment for Aluminium

Aluminium requires a different approach. The native aluminium oxide layer must be etched and a conversion coating applied — either chromate (where regulations permit) or a modern chromate-free process such as Alodine (TCP) or zirconium-based conversion coating. These create a thin, adherent, corrosion-resistant interface that is compatible with both epoxy and polyester powder coatings.

For Qualicoat-certified coating of architectural aluminium, the pre-treatment line must be validated and audited to Qualicoat Specifications, which set minimum standards for conversion coating weight, adhesion (cross-hatch, GT0 or GT1), and accelerated corrosion resistance.

Quality Assurance Protocol

Every batch leaving our line is subject to a random-sample cross-hatch adhesion test (ISO 2409) on a test coupon that has passed through the full pre-treatment and curing cycle. GT0 (no flaking) is our minimum acceptance standard. Any result of GT1 or worse triggers a full bath analysis and line hold until root cause is identified.

When Pre-Treatment Goes Wrong: Root Cause Checklist

If you're seeing adhesion failures or premature corrosion, work through these in order:

Check the DI rinse conductivity first — this is the most common single cause of osmotic blistering
Verify degreaser titration — exhausted alkali won't emulsify drawing oils
Measure phosphate coating weight — under 1.5 g/m² on steel is insufficient
Review part geometry — blind tubes and cavities may not be fully wetted by spray
Check oven temperature profile — incomplete cure mimics adhesion failure

Pre-treatment is where coating quality is won or lost. Our technical team is happy to audit your current pre-treatment setup and identify where improvements in process control can translate directly into better coating performance. Contact us to arrange a line assessment.
